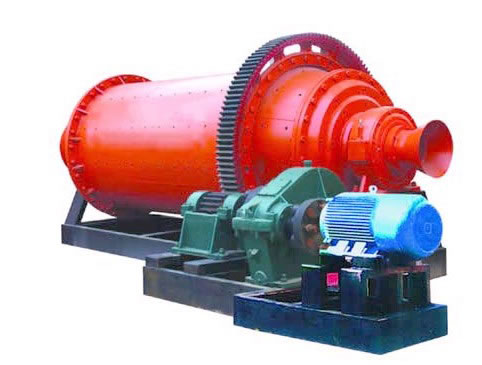

Wet Process Ball Mill
Description of Wet Process Ball Mill:
This wet process ball mill is mainly used to regrind materials that have been crushed, and it is widely applied in various industries, like cement, fireproof materials, silicate products, building materials, fertilizers, ferrous metals, nonferrous metals, glass, ceramics, and so on.
And our wet process ball mill is characterized by simple structure, convenient maintenance, reliable performance, easy installation, long-time continuous operation, longer service life, among others.
Working Principles of Wet Process Ball Mill:
This wet process ball mill is a horizontally rotary tubular device, and it has two stock bins. It is grid-type and gear-driven. Along the hollow shaft, materials are conveyed spirally and evenly to the first stock bin by the feeding device.
Technical Parameters of JR Series Wet Process Ball Mill:
| Specification | Output (t/h) | Rotating speed of cylinder | Loading capacity of grinding body (t) | Main motor | Main speed reducer | Helper drive | Weight | |
| Model | Power | |||||||
| 1.5×5.7 | 3.0-8.0 | 29.2 | 11.0 | JR127-8 | 130 | ZD50-9-Ⅱ | 23.6 | |
| 1.8×6.4 | 6.0-13 | 24.5 | 19.6 | JR138-8 | 245 | ZD60-8-Ⅱ | 36.0 | |
| 2.2×6.5 | 8.0-16 | 21.4 | 32 | JR158-8 | 380 | ZD70-9-Ⅰ | 47.5 | |
| 2.4×6.0 | 10-20 | 20.9 | 29 | JR4503-8 | 400 | ZD70-9-Ⅰ | 66.0 | |
| 2.4×7.0 | 10-25 | 20.9 | 32.5 | JR1512-8 | 475 | ZD70-9-Ⅰ | 73.0 | |
| 2.4×8.0 | 10-28 | 20.9 | 38 | JR1510-8 | 570 | ZD80-8-Ⅱ | 76.0 | |
| 2.6×5.0 | 8.0-22 | 20.9 | 31 | JR1512-8 | 475 | ZD80-8-Ⅱ | 11 | 68.0 |
| 2.6×6.5 | 8.0-30 | 20.9 | 34 | JR1512-8 | 570 | ZD80-8-Ⅱ | 11 | 84.0 |
| 2.7×6.0 | 15-35 | 19.4 | 52 | YR630-8 | 630 | MBY630 | 11 | 94.0 |
| 2.7×7.0 | 16-38 | 19.4 | 60 | YR710-8 | 710 | MBY710 | 15 | 116 |
| 2.7×8.0 | 18-40 | 19.4 | 63 | YR800-8 | 710 | MBY710 | 15 | 122 |
| 3.0×6.0 | 18-36 | 19.4 | 68 | YR710-8 | 710 | MBY710 | 15 | 126 |
| 3.0×7.0 | 20-40 | 19.4 | 75 | YR800-8 | 800 | MBY710 | 15 | 132 |
| 3.0×9.0 | 25-45 | 19.4 | 85 | YR1000-8 | 1000 | MBY800 | 15 | 154.8 |
| 3.2×6.0 | 26-50 | 19.4 | 75 | YR800-8 | 800 | MBY710 | 15 | 135 |
| 3.2×7.0 | 28-55 | 18.3 | 81 | YR1000-8 | 1000 | MBY800 | 15 | 149 |
| 3.2×8.0 | 30-60 | 18.3 | 90 | YR1000-8 | 1000 | MBY800 | 15 | 160 |
| 3.2×9.0 | 35-65 | 17.5 | 96 | YR1250-8 | 1250 | MBY900 | 15 | 168 |
| 3.6×6.0 | 38-80 | 16.5 | 105 | YR1600-8 | 1600 | MBY1000 | 22 | 188.5 |
| 3.6×7.0 | 45-90 | 16.5 | 110 | YR1600-8 | 1600 | MBY1000 | 22 | 199.5 |
| 3.6×9.0 | 50-100 | 16.5 | 120 | YR1800-8 | 1800 | MBY1000 | 22 | 240 |
Technical Parameters of TD Series Wet Process Ball Mill (Synchronous Motor):
| Specification | Output (t/h) | Rotating speed of cylinder | Loading capacity of grinding body (t) | Main motor | Main speed reducer | Helper drive (kw) | Weight | |
| Model | Power | |||||||
| 2.7×3.6 | 13-28 | 22.2 | 39.0 | TD400-32 | 400 | 1000-300×1 | 11 | 89.0 |
| 3.2×4.5 | 25-45 | 20.4 | 65.0 | TD800-36 | 800 | 1000-300×1 | 11 | 139 |
| 3.2×6.4 | 30-45 | 18.3 | 86.0 | TD1000-36 | 1000 | 1000-300×1 | 15 | 145 |
| 3.6×5.0 | 35-75 | 17.3 | 96.0 | TD1400-40 | 1400 | 875-300×2 | 15 | 179 |
| 3.6×6.0 | 40-85 | 17.3 | 117 | TD1600-40 | 1600 | 875-300×2 | 15 | 188 |
| 3.6×6.4 | 60-85 | 17.3 | 102 | TD1600-40 | 1600 | 875-300×2 | 15 | 190 |
Note: The feeding size is no more than 20mm.
