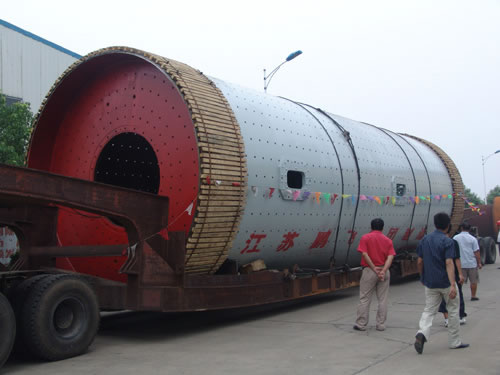

Tube Grinding Mill
Description of Tube Grinding Mill:
Our tube grinding mill is typically designed for grinding different kinds of ores and many other grindable materials, and it can be widely used in building materials, metallurgy, chemical industry, electricity industry, and many other industrial or mining fields.
It can be used for open circuit grinding, and when used in conjunction with powder classifier, it can also be used in circulatory closed-circuit grinding.
Our tube grinding mill can be used in dry production line as well as wet production line, and the grinding process can be accompanied by dry process. And it has advantages of strong material adaptability, strong continuous production capacity, big crushing rate, and it is easy to adjust the grinding fineness.
Technical Parameters of Cement Tube Mill:
| Specification (diameter×length) |
Rotating speed (r/min) |
Feeding size (mm) | Productivity (t/h) | Loading capacity of mill (t) | Main motor | Main speed reducer | Weight (t) | |||
| Model | Power (kw) | Rotating speed (r.p.m) | Model | Speed ratio | ||||||
| φ2.2×11 | 20.91 | ≤25 | 15~17 | 50 | TR1512-8 | 570 | 740 | Zd80 | 5.6 | 92 |
| φ2.4×8 | 20.91 | ≤25 | 14~18 | 39.5~42 | TRQ1512-8 | 570 | 740 | Zd80-9 | 5 | 76.4 |
| φ2.4×9 | 20.91 | ≤25 | 23~25 | 50 | TR1512-8 | 570 | 740 | Zd80-9 | 5 | 91 |
| φ2.4×10 | 20.91 | ≤25 | 16~22 | 50 | TR1512-8 | 570 | 740 | Zd80-9 | 5 | 111 |
| φ2.4×11 | 21 | ≤25 |
19~24 22~28 |
6265 | YR710-8/1180 | 710 | 740 | JDX630 | 5.6 | 125 |
| φ2.4×12 | 21 | ≤25 |
18~20 21~23 |
6365 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 127 |
| φ2.4×13 | 21 | ≤25 |
21~22 24~26 |
6668 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 131 |
| φ2.6×10 | 20.6 | ≤25 | 21~24 | 64 | YR800-8/1180 | 800 | 740 | JDX710 | 6.3 | 140 |
| φ2.6×13 | 20.6 | ≤25 | 28~31 | 81 | YR1000-8/1180 | 1000 | 740 | JDX800 | 6.3 | 158 |
| φ3.0×9 | 19.13 | ≤25 | 40~45 | 85 | YR1000-8/1180 | 1000 | 740 | MBY800 | 7.1 | 148 |
| φ3×11 | 18.92 | ≤25 | 44~47 | 95 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 177 |
| φ3×12 | 18.92 | ≤25 | 48~52 | 103 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 182 |
| φ3×13 | 18.92 | ≤25 | 39~45 | 116max | YR1400-8/1430 | 1400 | 740 | JDX900 | 7.1 | 200.7 |
| φ3.2×11 | 18.3 | ≤25 | 45~48 | 112max | YR1600-8/1430 | 1400 | 740 | JDX900 | 7.15 | 213.6 |
| φ3.2×13 | 18.7 | ≤25 | 50~55 | 133max | YR1600-8/1430 | 1600 | 740 | JDX1000 | 7.15 | 237 |
| φ3.4×11 | 18 | ≤25 | 45~55 | 120max | YR1600-8/1430 | 1600 | 740 | JDX1000 | 230 | |
| φ3.5×13 | 17 | ≤25 | 60~65 | 156max | YR2000-8/1730 | 2000 | 740 | TS130-A-F1 | 257.6 | |
|
φ3.8×13 (main bearing type) |
17 | ≤25 | 65~70 | 190 | YR2500-8/1730 | 2500 | 740 | JS130-C-F1 | 316 | |
| φ3.8×13 | 17 | ≤25 | 65~70 | 185 | YR2500-8/1730 | 2500 | 740 | DMG22/2500 | 313 | |
| φ4×13 | 16.3 | ≤25 | 78~80 | 191 | YRKK900-80 | 2800 | 745 | JS140-A | 348 | |
|
φ4.2×11 (main bearing type) |
15.8 | ≤25 | 100~110 | 182~190 | YR2800-8/17830 | 2800 | 740 | JS140-A-F1D | 350 | |
|
φ4.2×13 (main bearing type) |
15.2 | ≤25 | 120~130 | 245 | YRKK1000-8 | 3350 | 740 | MFY355-A | 390 | |
| φ4.2×13 | 15.2 | ≤25 | 110~120 | 230 | YRKK1000-8 | 3350 | 740 | MFY355-A | 380 | |
| φ4.6×14 | 15 | ≤25 | 100~115 | 285 | YR1000-8 | 4200 | 740 | J3160-C | 485 | |
Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.
Technical Parameters of Raw Mill:
| Specification (diameter×length ) |
Rotating speed (r/min) |
Feeding size (mm) | Productivity (t/h) | Loading capacity of mill (t) | Main motor | Main speed reducer | Weight (t) | |||
| Model | Power (kw) | Rotating speed (r.p.m) | Model | Speed ratio | ||||||
| φ3×(8.5+5) | 18.9 | ≤25 | 55~53 | 76~80 | YR1000-8/1180 | 1000 | 740 | JDX800 | 6.3 | 160 |
|
φ3.2×(7+1.8) (Cantilever drying) |
18.25 | ≤25 | 50~53 | 59 | YR630-8 | 1000 | 740 | JDX800 | 6.3 | 153 |
|
φ3.5×10 (Cantilever drying) |
17.3 | ≤25 | 75~80 | 87 | YR1250-8/430 | 1250 | 740 | JS110-A-F1 | 214 | |
| φ3.6×(7.5+1.5) | 17.3 | ≤25 | 90~95 | 98 | YRkk710-8 | 1400 | 740 | JDX900 | 7.1 | 220 |
| φ3.8×1.2 | 16.6 | ≤25 | 133 | 100~110 | YR800-8 | 2000 | 740 | JS130-A | 295 | |
| φ4.6×(9.5+3.5) | 15 | ≤25 | 185 | 175~180 | YRkk1000-8 | 3550 | 740 | MFY355A | 415 | |
Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.
Technical Parameters of Wet Raw Mill:
| Specification (diameter×length ) |
Rotating speed (r/min) |
Feeding size (mm) | Productivity (t/h) |
Loading capacity of mill (t) |
Main motor | Main speed reducer | Weight (t) | |||
| Model | Power (kw) | Rotating speed (r.p.m) | Model | Speed ratio | ||||||
| φ2.2×7 | 21.4 | ≤3 | 20~25 | 31 | YR148-8 | 380 | 740 | ZD70-9 | 5 | 49 |
| φ2.2×13 | 21.6 | ≤25 | 33~37 | 58~60 | YR630-8/1180 | 630 | 740 | MBY630 | 5.6 | 53.4 |
| φ2.4×13 | 21 | ≤25 | 45~50 | 65~70 | YR800-8/1180 | 800 | 740 | JDX710 | 5.6 | 131 |
| φ2.6×13 | 20 | ≤25 | 45~46 | 80t (max) | YR1000-8/1180 | 1000 | 740 | TDX800 | 6.3 | 153 |
| φ6.2×6.4 | 18.5 | ≤25 | 32~41 | 86~90.5 | TDMK1000-36 | 1000 | 740 | 134 | ||
Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.
Technical Parameters of Drying Raw Mill:
| Specification (diameter×length ) |
Rotating speed (r/min) |
Feeding size (mm) | Productivity (t/h) |
Loading capacity of mill (t) |
Main motor | Main speed reducer | Weight (t) | |||
| Model | Power (kw) | Rotating speed (r.p.m) | Model | Speed ratio | ||||||
| φ2.4×8 | 20.91 | ≤25 | 25~28 | 39~42 | JRQ1512-8 | 570 | 740 | ZD80-9 | 5 | 76.4 |
| φ2.4×10 | 20 | ≤25 |
27~30 38~40 |
50 | YR710-8/1180 | 710 | 740 | JDX630 | 5.6 | 111 |
| φ2.4×11 | 21 | ≤25 |
41~42 46~48 |
62~65 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 125 |
| φ2.4×12 | 21 | ≤25 |
40~42 45~48 |
63~65 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 127 |
| φ2.4×13 | 21.5 | ≤25 | 48~51 | 68~72 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 131 |
| φ2.6×8 | 20 | ≤25 | 30~35 | 54 | YR630-8/1180 | 630 | 740 | JDX630 | 5.6 | 135 |
| φ2.6×10 | 20.91 | ≤25 | 45~46 | 80 | YR1000-8/1180 | 1000 | 740 | JDX710 | 6.3 | 136 |
| φ3×9 | 19.13 | ≤25 | 50~55 | 76~80 | YR1000-8/1180 | 1000 | 740 | JDX800 | 6.3 | 145 |
| φ3.2×7 | 18.25 | ≤25 | 50~52 | 58 | YR1000-8/1180 | 1000 | 740 | MBY800 | 6.3 | 140 |
| φ3.2×9 | 18.3 | ≤25 | 60~70 | 90 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 175 |
| φ4.6×10+3.5 | 15 | ≤25 | 195 | 190 | 3550 | 740 | JS150-B-F | 476 | ||
Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.
