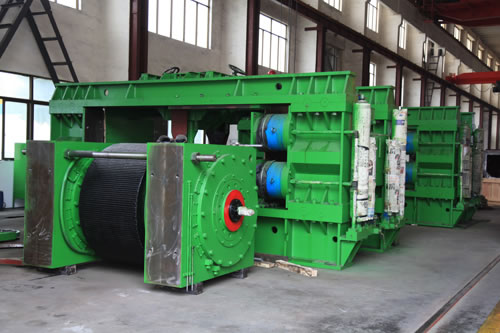

Rolling Machine
Description of Rolling Machine:
Our rolling machine is a kind of new-type cement grinding equipment developed on the basis of advanced technology, and its grinding system has integrated the rolling, scattering, separating, drying and powder separating into one body. Besides, when used together with a ball mill, it can be used in various process flows, like pre-grinding, mixing, semi-finished grinding, finished grinding, and more.
Due to the change in its grinding principles, this rolling machine and its grinding system have more advantages, like 50-100% lower power consumption, and 100-300% higher productivity.
Features of Rolling Machine:
1. Heat overlaying weld has been employed to make the maintenance of wear-resisting layer more convenient. Meanwhile, the amount of microcracks is largely reduced, and the service life of roller surfaces is no less than 8000h. It is quite easy to maintain the roller surfaces.
2. Aeronautic hydraulic technique is used to make the hydraulic system more reliable and stable.
3. With the cooperation of its hydraulic system and automatic control system, it can do the work of load control of main driving motor, deviation control of space between rollers, automatic deviation adjustment, and fault diagnosis.
4. Its matched powder separator has scattering, grading and drying capacity, which makes low operation costs and high working efficiency possible.
PFG120-45 Rolling Machine
Parameters of PFG120-45 Rolling Machine:
1. Name: PFG120-45 Rolling Machine
2. Material name: raw meal of cement, clinker and so on.
3. Total moisture content: ≤1-1.5%
4. Maximum feeding size: ≤70mm
5. Average feeding size: ≤25mm
6. Discharge size: more than 25% of processed materials are 0.08mm.
7. Productivity: 100-140t/h
8. Operation mode: continuous
9. Power supply mode: voltage: 380V; motor model: Y355L-8
10. Layout mode: 2×220KW power for indoor motor
11. Roller diameter: 1200mm
12. Roller width: 450mm
13. Linear velocity: 1.48m/s
14. Max. crushing capacity of rollers: 70KN/cm
PFG140-80 Rolling Machine:
| Equipment name | PFG 140-80 rolling machine and matched V type powder separator(or scattering machine) | |
| Unit | set | 2 |
| I. Basic Parameters of Subsets | ||
| 1. Rolling machine | Specification | |
| Roller diameter | mm | Φ1400 |
| Roller length | mm | 800 |
| Passing capacity | ≥t/h | 300-350 |
| Rotating speed of rotor | r/min | 20.2 |
| Linear speed of rollers | m/s | 1.48 |
| Working roll gap range | mm | 25~40 |
| Feeding size | mm | ≤45mm(≥95%) |
| Discharging size | mm | ≤2mm/0.09mm(65%/20%) |
| Moisture content of material | % | ≤1% |
| 2. V type powder separator | ||
| Model | PF3000 | |
| Air passing volume | M³/h | 180000~210000 |
| Air speed between guiding plates | m/s | 6.8 |
| Resistance force | Pa | 1000~1500 |
| Ⅱ. Main Components | ||
| 1. Rolling machine | ||
| 1.1. Main motor | Set | 2 |
| Model | YRKK560-8 | |
| Power | kW | 2×560 |
| Voltage | kV | 10 |
| Rated rotating speed | r/min | 750 |
| Operation frequency | Hz | |
| Protection level | IP44 | |
| Weight | kg | 5560 |
| 1.2. Main Speed reducer | set | 2 |
| Model | XG48-36.5 | |
| Max. transmitting power | kW | 500 |
| Nominal speed ratio | 36.5 | |
| Actual speed ratio | ||
| Weight | kg | 5000 |
| 2. Matched oil station model | XYZ-100G | |
| Cooling water volume | m3/h | 9 |
| Power | kW | 4 |
| Power of electric heater | KW | 24 |
| Voltage | V | 220(380) |
| 2.1. Main bearing | 4 | |
| Model | Bearing 232/600CAK/W33 | |
| Weight | kg | 1620 |
| 2.1.1 thermo indicator of bearing | 4 | |
| Model | WEPM-201 | |
| Graduation number | PT100 | |
| Temperature measuring range | ℃ | 0~100 |
| 2.1.2. Grease centralized lubricating system | ||
| Pump model | ZB2-M16F multipoint lubrication pump | |
| Power | kW | 0.25 |
| Voltage | V | 380 |
| Nominal pressure | MPa | 20 |
| Amount of lubricating point | 14 | |
| 2.1.3. Hydraulic system | ||
| Motor model | Y160L-4 | |
| Power | kW | 15 |
| Voltage | V | 380 |
| Diameter of master hydro-cylinder | mm | ￠400 |
| Amount of master hydro-cylinder | 4 | |
| Normal operation pressure | MPa | 16 |
| Max. operation pressure | MPa | 20 |
| Oil cylinder stroke | mm | 90 |
| 2.1.4. Rollers | 2 | |
| Parent material | 35CrMo | |
| Weight | kg | 14129 |
| Hardfacing layer thickness of rollers | mm | 20 |
| Hardfacing layer hardness of roller | HRC50 | |
| Wear-resisting pattern shape of rollers | Straight patterns | |
| First maintenance-free lifespan of rollers | h | ≥8000 |
| 2.1.5. Bearing supports | 4 | |
| Material | ZG270-500 | |
| Weight | kg | 3620 |
| 2.1.6. Rack | ||
| Material | Q235-A | |
| Weight | kg | 23218 |
| 2.1.7. Feeding apparatus | ||
| Model of driving device to adjust valve plate | Manual screw adjustment | |
| Lining plate material | Wear resistant | |
| Working lifespan | 3000h | |
| 2.1.8. Electrical control system | ||
| 2.2. Weighing bin | ||
| Volume | t | |
| Weight | kg | |
| 2.3. "V" Type Powder Separator | ||
| 2.4. Cyclone environmental protection equipment | ||
PFG150-100 Rolling Machine:
Technical Parameters of PFG150-100 Rolling Machine:
1. Name: PFG150-100 rolling machine
2. Application: clinker crushing
3. Amount: 1 set
4. Material: clinker
5. Total moisture content: ≤1~1.5%
6. Max.feeding size: 80mm
7. Discharging size: more than 60% of products are less than 2mm.
8. Production capacity: 483~543t/h
9. Working mode: continuous
10. Power supply mode: voltage 6KV
11. Layout mode: indoor
12. Required power: 2×710 kW
13. Diameter of roller: 1500mm
14. Width of roller: 1000mm
15. Rotating speed of roller: 19.7 r/min
PFG160-140 Rolling Machine:
Technical Parameters of PFG160-140 Rolling Machine:
1. Name: PFG160-140 rolling machine
2. Application: clinker crushing
3. Amount: 1 set
4. Material: clinker
5. Total moisture content: ≤1-1.5%
6. Max.feeding size: Dmax≤60mm
7. Average feeding size: D≤25mm
8. Discharging size: 22%~30% is 0.08mm.
9. Productivity: 600-720t/h
10. Working mode: continuous
11. Power supply mode: voltage: 10KV; motor model: YR5603-4
12. Layout mode: indoor motor power: 2×1120KW
13. Diameter of roller: 1600mm
14. Width of roller: 1400mm
15. Linear velocity: 1.47m/s
16. Max. crushing capacity: 70KN/cm2
17. V type powder separator: V-XY6817
